The sheet metal enclosure manufacturing process involves a series of carefully controlled engineering stages, from initial design and material selection through to cutting, forming, assembly and finishing. Each step plays a critical role in ensuring that the resulting enclosure meets the required strength, precision and all-important performance standards for its purpose.
When properly planned and executed, this tried-and-tested process delivers reliable, high-quality results while avoiding common metal fabrication mistakes such as weak structural integrity and misaligned parts. This guide will walk you through the production path of sheet metal enclosures at JC Metalworks.
Step-by-Step Guide to Steel Enclosure Manufacturing
The steps involved in manufacturing steel enclosures follows a similar process to general metal fabrication, as we outline below.
1. Design & Engineering Planning
Every manufacturing process needs to start with quality design and engineering plans to be successful. It is during this stage that aspects such as the chosen material, desired dimensions, ventilation needs, mounting requirements, environmental considerations and cable access will all be carefully assessed.
The design stage will also determine how the enclosure will work once created. Features such as folded edges, access panels, fixings and the internal layout will be designed to work together for optimal functionality and cost-efficiency. Our designers will work in partnership with you to craft a plan for effective sheet metal enclosures for your specific requirements.

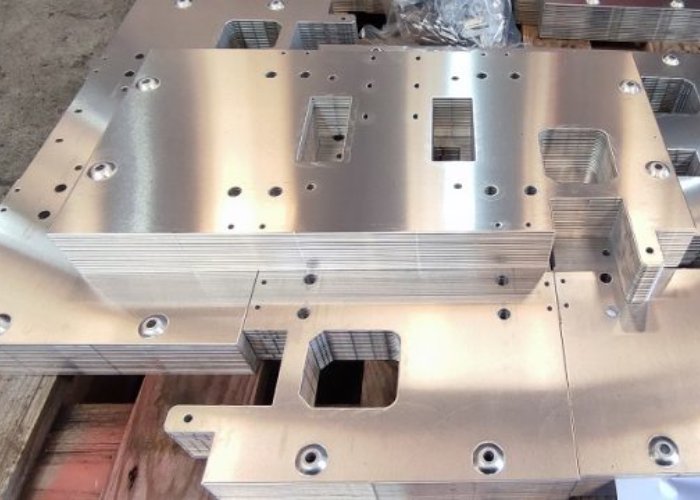

2. Sheet Metal Cutting
Once the plans for your sheet metal enclosures have been finalised, the next stage of the process is sheet metal cutting. This stage is responsible for creating the flat metal components that will, in turn, be formed and assembled into the final product. Cutting accuracy is crucial here, as all parts will need to align correctly for success.
Laser cutting is widely used for metal enclosures due to its precision, clean edges and ability to create detailed cut-outs for vents, cable access and fixings. CNC punching is ideal for repetitive hole patterns and formed features. By combining both processes, manufacturers can achieve efficient production and consistent quality.
At JC Metalworks, we use advanced cutting technology to deliver accurate results for bespoke enclosure applications.
3. Metal Forming
After cutting, the flat sheet metal components are shaped through the metal forming process. For enclosures, this typically involves precision bending to create the structural form of the cabinet, housing or panel. Accurate sheet metal forming is essential to ensure all sections fit together correctly and provide the required strength and rigidity.
Our modern press brake technology allows sheet metal to be bent with a high degree of accuracy and repeatability. Factors like bend radius, material thickness and fold sequence must all be carefully considered during production, as these can affect both the appearance and structural performance of the enclosure. Poorly planned metal forming can lead to distortion, weakened sections or assembly issues further down the line.
4. Fabrication & Welding
Following the cutting and forming process, the enclosure moves into the fabrication and welding stage, where individual panels, brackets, doors and supports are permanently joined to create the main structure. Accuracy during the earlier manufacturing stages is essential, as precise components ensure correct alignment, structural strength and a high-quality final build.
Depending on the material type and application, manufacturers may use MIG, TIG, laser or robotic welding processes. Each sheet metal welding option offers different advantages in terms of speed, precision and finish quality. Consistent, high-quality welding is important for maintaining structural integrity, design accuracy and a clean, professional appearance.
Once fabrication is complete, welded areas are often ground, smoothed and prepared for finishing. This surface preparation helps remove imperfections and ensures the enclosure is ready for treatments such as powder coating, painting or protective finishes.
5. Metal Finishing
One of the later stages of our sheet metal enclosure manufacturing process is in metal finishing. This stage enhances both the appearance and durability of the enclosure, helping protect it against corrosion, wear and environmental exposure. The type of finish selected will depend on the enclosure’s intended use, operating environment and visual requirements.

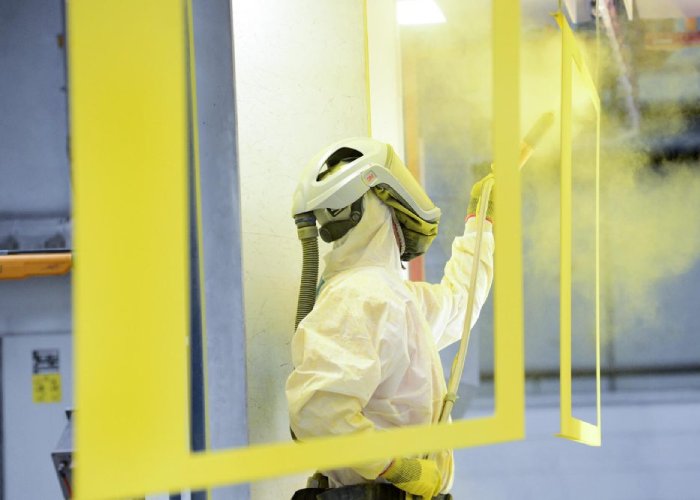

Powder coating is one of the most popular finishing options across various industries and not just for metal enclosures, due to its durability, uniform appearance and wide range of colour choices. Other finishes may include galvanising, plating, polishing or specialist protective coatings depending on the performance requirements of the application.
At JC Metalworks, our team offers a range of professional metal finishing solutions as well as powder coating, which can be tailored to the needs of each project and are essential for many components before final assembly.
6. Final Assembly
Once all components have been fabricated, welded and finished, the enclosure progresses to the final assembly stage. Here, the coated parts are carefully fitted together to create your completed product, with close attention paid to accuracy, functionality and overall finish quality.
Assembly may include:
- Installing hinges, locks and mechanical fixings
- Fitting seals, gaskets and internal mounting hardware
- Integrating electrical components where required
- Attaching doors, panels and sub-assemblies
This stage, along with a final project quality check, ensures every component works together correctly and meets required quality standards before packaging and dispatch. Extra care is taken throughout assembly to protect coated surfaces and maintain the clean, professional finish achieved during the finishing process.
We also provide customised packaging solutions tailored to each enclosure or component, helping to protect products during storage and transit so they arrive in excellent condition.
What Can Sheet Metal Enclosures be Used For?
Sheet metal enclosures are used across a wide range of industries to protect equipment, improve safety and provide secure housing for electrical and mechanical systems. Their strength, durability and flexibility make them suitable for both internal and external applications.
Common applications for sheet metal enclosures include electrical cabinets, control panels, server housings, generator enclosures, machine guards, battery storage units, HVAC systems, retail kiosks and industrial equipment housings.
HVAC Enclosures
HVAC enclosures are designed to protect heating, ventilation and air conditioning systems while allowing efficient airflow and easy maintenance access. These enclosures are commonly used in commercial, industrial and infrastructure settings where durability and weather protection are essential.
Battery Storage Enclosures
Battery storage enclosures are increasingly important within renewable energy and backup power applications. These enclosures help protect sensitive battery systems from environmental exposure.
Kiosk Enclosures
Kiosk enclosures are widely used within retail, transport and self-service environments, combining functionality with a professional appearance. Designed to house screens, payment systems and interactive technology.
Metal Enclosure Manufacturing with JC Metalworks
At JC Metalworks, we specialise in the design and manufacture of high-quality bespoke sheet metal enclosures for a wide range of industries and applications. With extensive in-house capabilities covering design, cutting, forming, welding, finishing and assembly, we provide complete manufacturing solutions tailored to your exact requirements.
Our experienced team works closely with customers throughout every stage of the project, helping to optimise designs for manufacturability, durability and long-term performance. Whether you require one-off prototypes or large production runs, precision engineering delivers consistent results. Contact our experts today for a free quote on your upcoming project.
